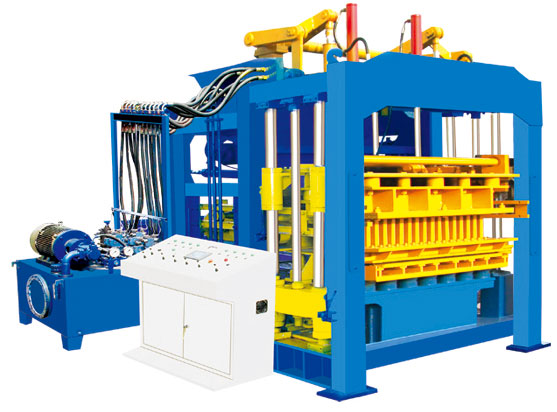

BR10-15_Concrete block making machine|Egg laying block making machine|Eco brick making machine|Concrete interlocking paver|Concrete pipe making machine-Berry machinery

Features:

1. Frequency Converting Control Technology

All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.

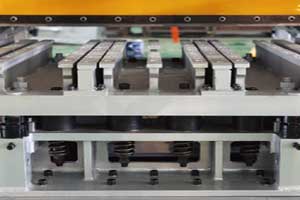

2. Vibration System

Dynamic table and static vibrating table structure can ensure the amplitude of the vibration table and ensure the high quality of concrete products. Main vibration adopt low frequency standby, high frequency operation which improve the speed of operation and product quality.

brick machine

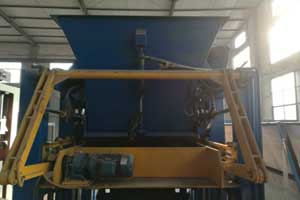

3. Feeding System

Adopt two feeding shaft system which can guarantee the material feeder can running much smoothly and feeding material much equably.

block making machine

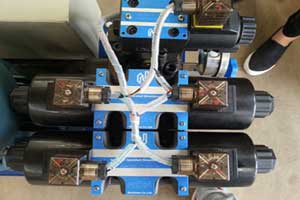

4. Hydraulic System

Hydraulic pumps and hydraulic valves adopt international brands. And hydraulic pipe uses “Flange Connection”, convenient installation and maintenance.

block machine

5. Siemens Motor and PLC.

Adopt Siemens making brand motor and PLC which can guarantee the quality of the machinery.

PLC

Specification

Cycle time	15-20s
Pallet size	1100*900mm
Rated pressure	21MPA
Vibration	Table vibration
Vibration frequency	2800 - 4500r/min
Host machine power	35KW
Overall dimension	7500x2500x3020mm
Gross Weight	12T
Factory area	2000m2
