Features:

1. Frequency Converting Control Technology

All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.

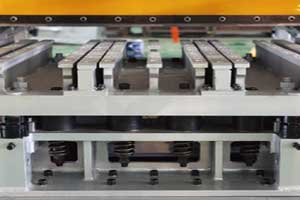

2. Vibration System

Dynamic table and static vibrating table structure can ensure the amplitude of the vibration table and ensure the high quality of concrete products. Main vibration adopt low frequency standby, high frequency operation which improve the speed of operation and product quality.

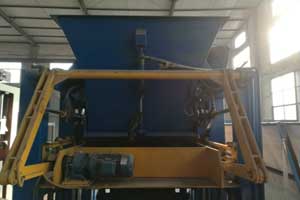

3. Feeding System

Adopt two feeding shaft system which can guarantee the material feeder can running much smoothly and feeding material much equably.

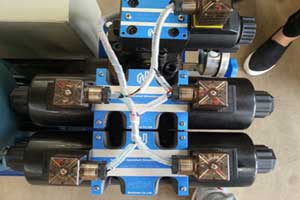

4. Hydraulic System

Hydraulic pumps and hydraulic valves adopt international brands. And hydraulic pipe uses “Flange Connection”, convenient installation and maintenance.



5. Siemens Motor and PLC

Adopt Siemens making brand motor and PLC which can guarantee the quality of the machinery.



Specification：


Capacity：


Product size(mm)	Pcs/Cycle	Pcs/Hour	Picture
390*190*190	8	1440
390*140*190	14	2520
200*100*60	27	3900
225*112.5*50	20	2850
